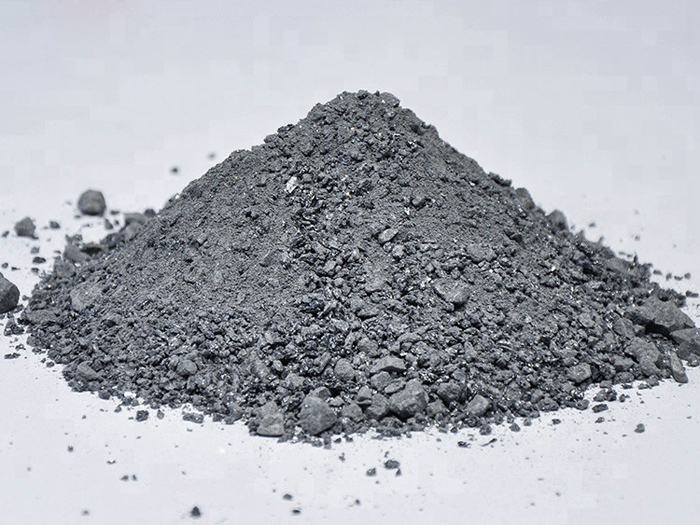

Features: castable for blast furnace runner is composed of corundum or high alumina clinker as the main raw material and reasonable additives .It can be directly poured or prefabricated.It is mainly used for lining of iron channel material of blast furnace.It has the following advantages:
1.Strong resistance to erosion and erosion of molten iron and slag;
2.Less water,good fluidity,anti burst,and quick baking;
3.Strong thermal shock resistance and volume stability.
| 项目ltems | LXTG-1 | LXTG-2 | LXTG_ | LXTG-4 | LXTG-5 | LXTG-6 | |
| Al203 %≥ | 75 | 70 | 55-60 | 58 | 70 | 66 | |
| SiC+C%≥ | 10 | 14 | 15-30 | 30 | 13 | 18 | |
| 体积密度g/cm³≥ Bulk density | 110℃×24h | 2.98 | 2.95 | 2.85 | 2.88 | 2.75 | 2.7 |
| 耐压强度MPa ≥ | 110℃×24h | 4.5 | 7.8 | 4.0 | 7 | 6 | 7 |
| Crushing strength | 1450℃×3h | 5.5 | 7.3 | 6.0 | 10 | 10 | 9 |
| 抗折强度MPa ≥ | 110℃×24h | 35 | 44 | 35 | 35 | 30 | 30 |
| Bending strength | 1450℃×3h | 55 | 45 | 55 | 60 | 40 | 40 |
| 重烧线变化率(1450℃×3h)%Permanent Linear Change on heating | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | |
| 使用部位 | 主沟铁线、摆动沟
Main ditch iron wire Swing ditch |
主沟渣线Slag line of main ditch | 支沟料
Branch ditch material |
渣沟
Ash Hopper |
|||
