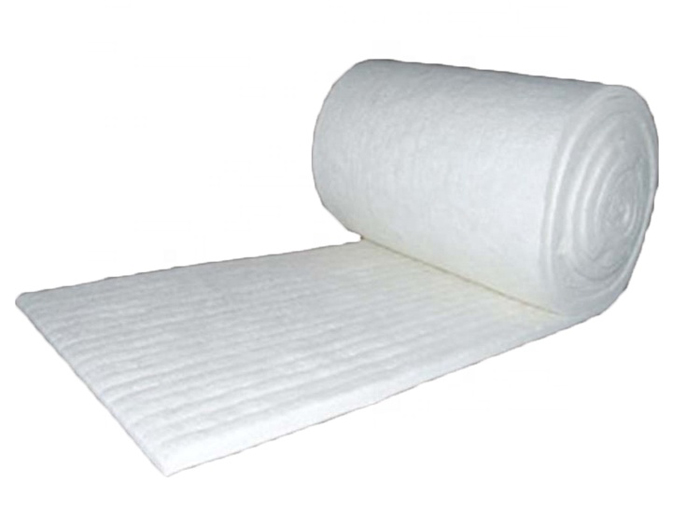

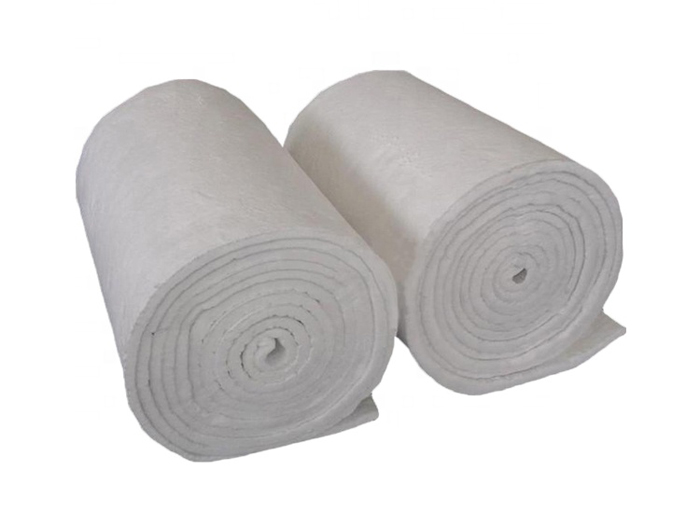

Alumina-silicate Refractory Fiber Blanket
Feature:
1.Application of fire-resistant wall lining in industrial kilns,boilers and high-temperature equipment;
2.Thermal insulation and insulation of pipes and equipment;
3.Fire prevention and heat insulation of fire doors and high-rise buildings;
4.Thermal insulation and sound absorption in electric power, chemical industry, metallurgy, shipbuilding, viation and other industries.
| ITEM | (TD) | (STD) | (HP) | (HA) | (ZH) | (ZA) | |
| ZRGX-10020 | E[cX=O2 | E[cx=* U | ZRGX-40020 | E[cx=5 u | ZHIGX-60u2U | ZHGX-7002U | |
| Classification Temperature ℃ |
1000 | 1260 | 1260 | 1260 | 1400 | 1400 | 1430 |
| Al₂O₂% | ≥40 | ≥45 | ≥47 | ≥43 | ≥53 | ≥48 | ≥40 |
| ZrO.% | ≥5-8 | ≥15 | |||||
| Cr₂O₃% | |||||||
| Al,O₄+SiO. | ≥95 | ≥96 | ≥98 | ≥99 | ≥99 | ||
| Al,O,+SiO,+ZrO(Cr₁O)% | ≥99 | ≥99.1 | |||||
| Fe₂O₃% | ≤1.5 | ≤1.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| K₂O+Na₂O% | ≤1.0 | ≤0.5 | ≤0.4 | ≤0.2 | ≤0.4 | ≤0.3 | ≤0.2 |
| Strength of Extension Pa |
≥0.04 | ||||||
| Thermal Conductivity W/m.k ( volume-weight 1 3 0 k g/m ² ) | ≤0.153(average temperature 500℃±10℃) | ||||||
| % Cooked Shrinkage Rate ( heat preservation 2 4 h ) |
≤4(800℃) | ≤4(1000℃) | ≤4(1100℃) | ≤4(1100℃) | ≤4(1200℃) | ≤4(1200℃) | ≤4(1350℃) |
| Volume-weight kg/m³ | 65,100,130,160 | ||||||
| Specification mm | (3200~15000)×(1220-610)×(6-60) | ||||||

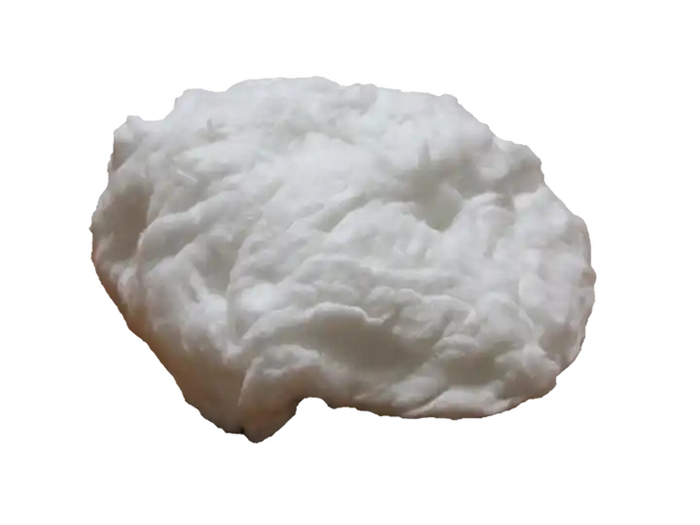

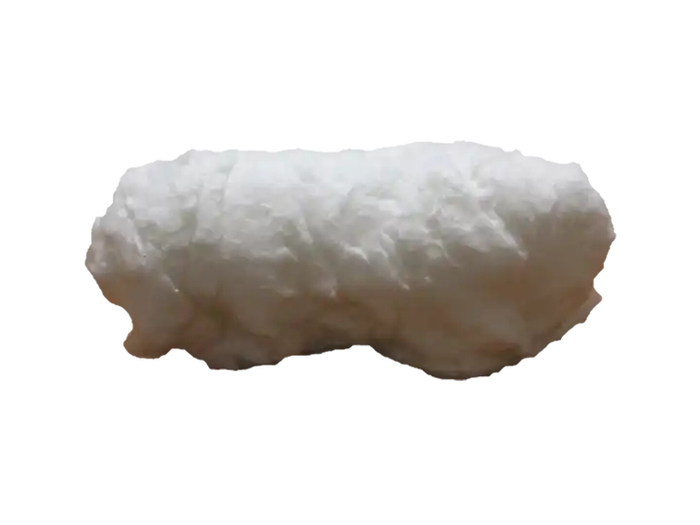

Alumina-silicate Refractory Fiber Cotton
Features:
Alumina-silicate fire-resistant fiber cotton is made of high-quality natural coke gemstone or synthetic material by melting,spinning or blowing.
Cotton fiber is long
1.Excellent thermal stability;
2.Low thermal conductivity;
3.Excellent chemical stability;
4.Good elasticity;
5.Excellent sound absorption performance.
Product application:
1.Materials of vacuum molding products;
2.Raw materials of textile products;
3.Raw materials of unshaped refractory fiber products;
4.Refractory and heat insulation filling materials.
| Index | 【TD | (STD | (HP) | (HA) | (ZH) | (ZA) | |
| ZHGX-1001u | ZFCX-20010 | ZHGX-30010 | ZHGX-40010 | ZHGX-50010 | ZHGX-60010 | ZHGX-70U1L | |
| Classification Temperature ℃ | 1000 | 1260 | 1260 | 1260 | 1400 | 1400 | 1430 |
| Al₂O₃% | ≥40 | ≥45 | ≥47 | ≥43 | ≥53 | ≥48 | ≥40 |
| ZrO₂% | ≥5-8 | ≥15 | |||||
| Cr₂O₃% | |||||||
| Al₂O₃+SiO₂% | ≥95 | ≥96 | ≥98 | ≥99 | ≥99 | ||
| Al₂O₃+SiO₂+
ZrO₂ (Cr₂O₃)% |
≥99 | ≥99 | |||||
| Fe2O3% | ≤1.5 | ≤1.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| K,O+Na.O% | ≤1.0 | ≤0.5 | ≤0.4 | ≤0.2 | ≤0.4 | ≤0.3 | ≤0.2 |
| Fibre Diameter μm | 2~4 | ||||||
| Fiber Length mm Grain Diameter>0.21mm |
50-150 | ||||||
| Shot Content % | ≤15 | ||||||
| Specification kg/bag | 20 | ||||||

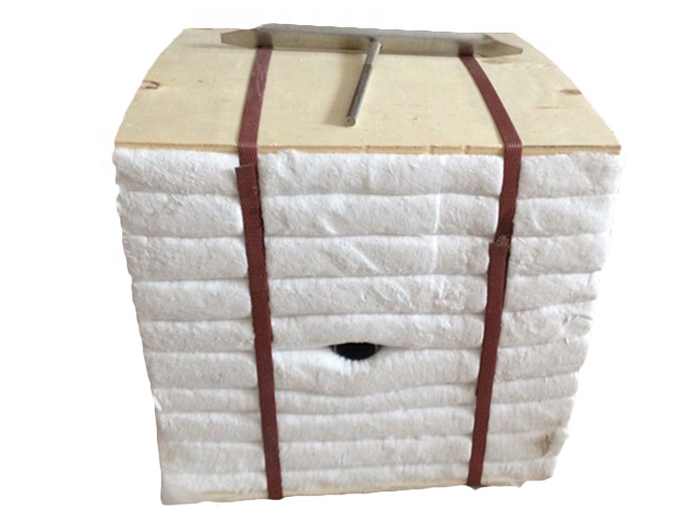

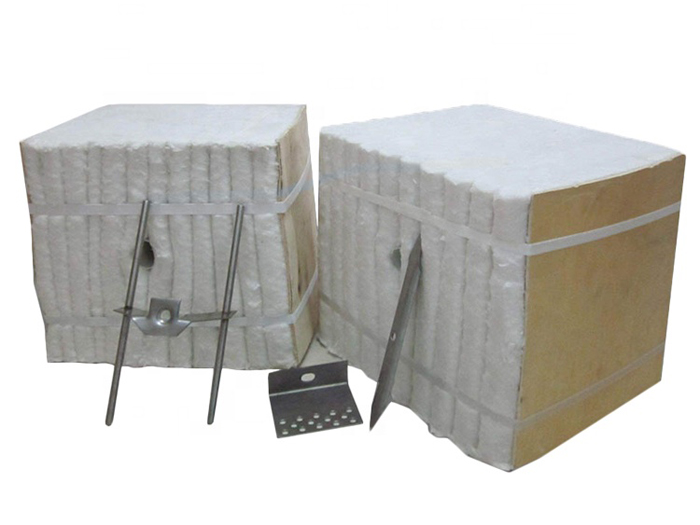

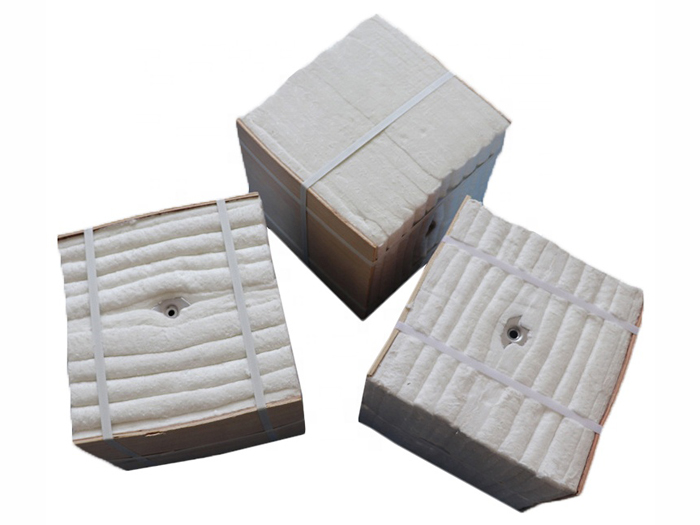

Alumina-silicate Refractory Fiber Module
Features:
Alumina-silicate Refractory Fiber Module is made of double-sided needled blanket of aluminosilicate refractory
1.Low Thermal Conductivity;
2.Low thermal capacity;
3.Excellent thermal stability and thermal shock
| ITEM | (TD） | (STD） | (HP） | (HA) | (ZH) | (ZA） | |
| ZRCX-innrn | ZRGX-20060 | 2HGX-J | CK-00L | ZRGX-40060 | ZRGX-50060 | ZRGX-60060 | |
| Classification Temperature℃ | 1000 | 1260 | 1260 | 1260 | 1400 | 1400 | 1430 |
| Al₂O₂% | ≥40 | ≥45 | ≥47 | ≥43 | ≥53 | ≥48 | ≥40 |
| ZrO₂% | ≥5-A | ≥15 | |||||
| Cr₂O₃% | |||||||
| Al,O₄+SiO.% | ≥95 | ≥96 | ≥98 | ≥99 | ≥99 | ||
| Al,O₄+SiO₂+ZrO₂ (Cr₁O₃)% | ≥99 | ≥99.1 | |||||
| Fe₂O₃% | ≤1.5 | ≤1.2 | ≤0.3 | ≤0.2 | ≤0.5 | ≤0.2 | ≤0.2 |
| K₂O+Na₂O% | ≤1.0 | ≤0.5 | ≤0.4 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.2 |
| Capacity.kg/m | 180~300 | ||||||
| Specification mm | Can be customized on request | ||||||

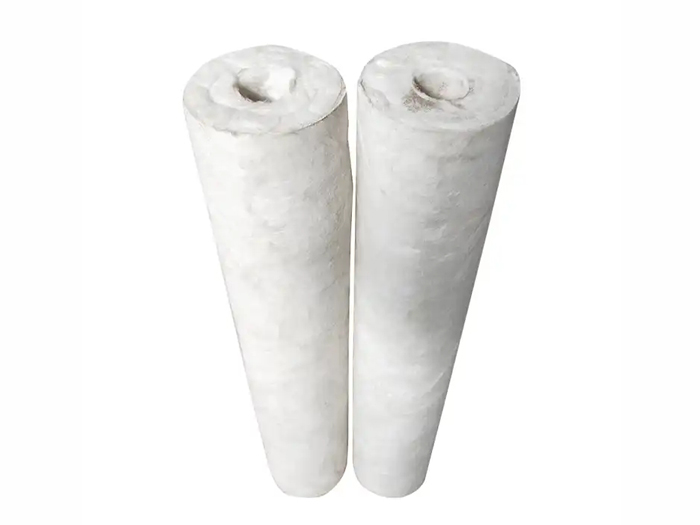

Alumina Silicate Pipe
Feature:
Alumina silicate pipe is widely used in high temperature pipe wall lining of power boiler, heat and power steam pipeline transmission and thermal insulation of high temperature pipeline in chemical industry.
| Item | Alumina-silicate Fiber Pipe | Shaped |
| Service Temp. ℃ | 1280 | 1280 |
| Bulk Density g/cm³ | 100-180 | 150-300 |
| 0.034(20℃) | 0.127(600℃) | |
| Thermal Conductivity Coefficient W/m.k | 0.09(400℃) | 0.20(1000℃ |
| 0.12(600℃) | ||
| Slagging Content %(>0.25mm | 11 | 13.6 |
| Permanent Linear Change % | -3.5 | -2 |
| Thermal Keeping Time 24 hours | 600℃ | 1000℃ |
Alumina Silicate Plugging Sleeve
Features:
Low thermal conductivity, light burst resistance, low heat capacity.
Applications:
Aluminum melting furnace, static furnace, mixing furnaceetc.
| Product code | JBXT |
| g/cm² Bulk Density | ≤0.2 |
| % Heating line shrinkage | ≤3(1100℃×24h) |
| ℃ Service temperature | ≤1400 |
About Lianxin:
The company has more than 20 patented technologies, more than 20 corporate honors, and international certifications such as ISO. With an annual output of 300,000 tons, the company is a leader in China’s refractory industry. As a manufacturer, we will provide you with factory direct prices. With more than 20 years of experience and a team of more than 200 professionals, we are committed to helping you find a solution that suits your needs.
What is the Price of Alumina Silicate Refractory Fiber Products Price?
The main factors affecting the price include: quantity and type. Alumina silicate refractory fiber products are key components for building kilns. Lianxin team will provide different pricing plans according to the different needs of customers. The price of alumina silicate refractory fiber products varies depending on the quantity and model selected. Customers who order large quantities of the same model can enjoy greater discounts.
About delivery time: Standard size bricks can be delivered immediately.
Regarding customized alumina silicate refractory fiber products, we have rich experience, short production cycle and fast delivery time.
In addition, we can also provide kiln material solutions and a series of technical guidance for construction according to the specific needs of customers.
Lianxin alumina silicate refractory fiber products are your solution!
With over 20 years of experience and a team of over 200 professionals, we are committed to helping you find the solution that’s right for you.
